M3 Thread to 1/32 Inch O.D. Tubing, Straight Compression

CAD Model

Related Products

Replacement Ferrules

Front and rear ferrules for metal and plastic tubing.

Configure Here
Replacement Screws

Compression screws for both M3CB5H and M3CB6H models.

Configure Here
Replacement O-Rings

O-Ring seals in all available materials.

Configure Here

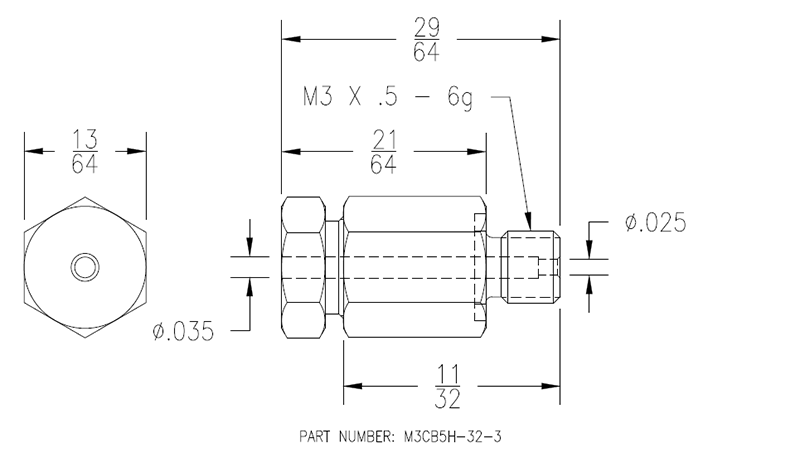

Description: Miniature compression fitting with M3x0.5 external thread, for 1/32″ OD stiff plastic or metal tubing.  Available with both a standard 6mm hex or a compact 5mm hex body.

Max Pressure Rating: 1,000 psig when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor.


  • 303 Stainless Steel construction.
  • Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope.
  • Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings.
  • Easy to install without special tools.
