M5 Thread to Barb, Adjustable Position Elbow

CAD Model
Message

Related Products

Replacement O-Rings

O-Rings in all available materials for both body and stud seals.

Configure Here
Replacement Studs

Studs for all available materials.

Configure Here
Polyurethane Tubing

Polyurethane tubing is recommended for use with our barbed fittings. It provides excellent flexibility and resistance to kinking.

Configure Here

Specifications

Material Construction ENP Brass, Brass, 316 Stainless, 303 Stainless
Seal Material Options EPDM, Black EPDM, Fluorosilicone, Viton®, Buna-N, Silicone, Chemraz®, Teflon®, AFLAS®
Maximum Pressure 100 psig
Product Family Fittings
Availability Usually Ships Within 1-2 Business Days
Configurable Options 6

Ordering Options

Part number format: M5LS[Stud Material]-[Tubing I.D.][Body Material]-[Seal Material][Cleaning Options][Lubrication Options]. Each bracketed segment is replaced by the code of the option chosen below; an option with no code is the standard choice and adds nothing.

Option Code Choice
Stud Material B Brass
None Stainless Steel
Tubing I.D. 1008-1 .170" to 3/16" (4.5mm) Long Barb
1008-2 .170" to 3/16" (4.5mm) Short Barb
1460 -- .160" (4.0mm)
1332 -- 1/8" (3.2 mm)
1132 -- 3/32" (2.4mm)
1016 -- 5/64" (2.0 mm)
1012 -- 1/16" (1.6mm)
Body Material None Brass
ENP ENP Brass
303 303 Stainless Steel
316 316 Stainless Steel
Seal Material
About this option 		None Buna-N
E EPDM
EB Black EPDM
V Fluorocarbon (FKM, Viton®)
S Silicone
T Teflon®
AF TFE/P (AFLAS®)
FS Fluorosilicone
C Perfluoroelastomer (FFKM, Chemraz®)
Cleaning Options
About this option 		None Standard Cleaning
I Instrument Grade Cleaning
Lubrication Options
About this option 		None Standard Lubrication
X No Lubrication

Overview

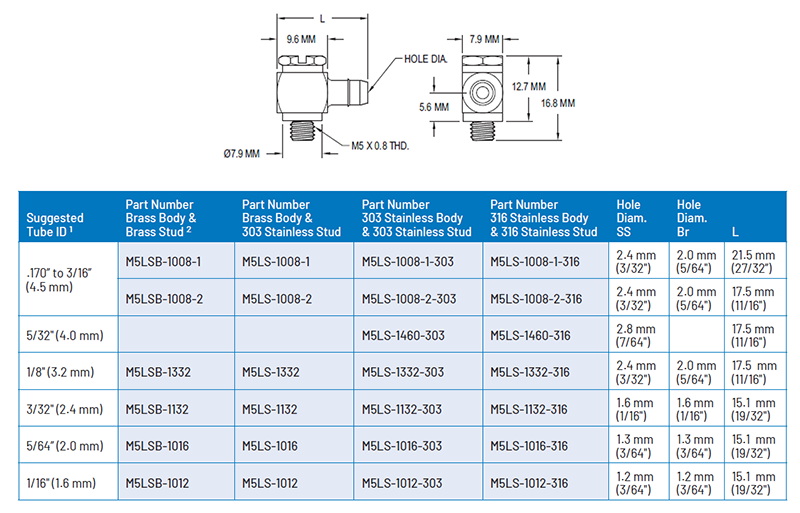

Description: Adjustable position elbow fitting, with M5x0.8 external thread and built-in barb.

Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

  • Beswick’s trademark O-ring seal design provides a leak-tight joint.
  • Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: Brass stud on M5LSB does not have a screwdriver slot.
