1/4-28 Threaded Ports, Selector Ball Valve

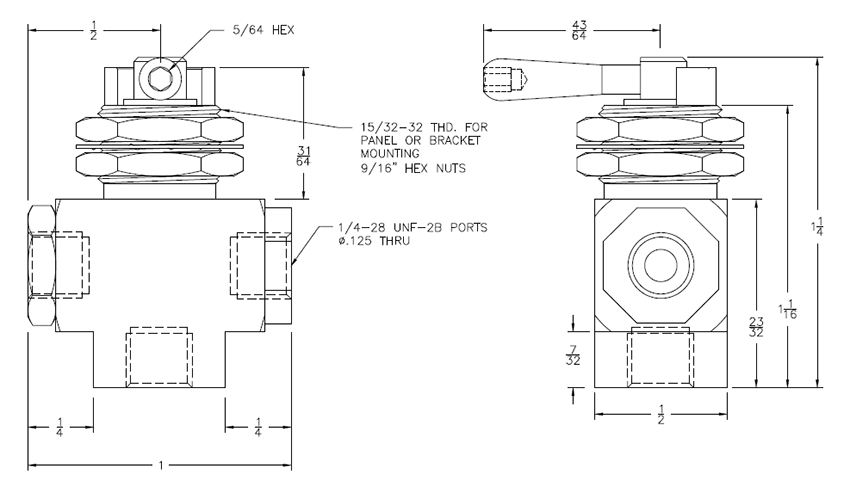

CAD Model


Description: Beswick’s miniature 1/4-28 threaded selector ball valve is an excellent choice for applications requiring a port selection valve. The MBVT-1414 allows bi-directional flow between a common inlet port on the bottom of the valve, and one of two selectable ports on either side. There is also an “off” position. The design also offers compact size, light weight, and increased flow over the 10-32 MBVT design.

Working Pressure Range: 500 psig

Effective Orifice: 1/8″

Porting: 1/4-28 internal threaded common and selectable ports.

Material: 303 stainless steel body.  316 stainless steel ball.

A Teflon® seat is used to seal the ball on all configurations. All configurations also contain one o-ring seal.
