10-32 Male Thread to Two Female 10-32 Threads, Adjustable Position Adapter

CAD Model
Message

Related Products

Replacement O-Rings

O-Rings in all available materials for both body and stud seals.

Configure Here
Replacement Studs

Studs for all available materials.

Configure Here

Specifications

Material Construction 316 Stainless, 303 Stainless, Brass
Seal Material Options AFLAS®, Silicone, Buna-N, Chemraz®, Teflon®, Fluorosilicone, EPDM, Viton®, Black EPDM
Maximum Pressure 1,000 psig
Product Family Fittings
Availability Usually Ships Within 1-2 Business Days
Configurable Options 5

Ordering Options

Part number format: MTS[Stud Material]-1010[Body Material]-[Seal Material][Cleaning Options][Lubrication Options]. Each bracketed segment is replaced by the code of the option chosen below; an option with no code is the standard choice and adds nothing.

Option Code Choice
Stud Material B Brass
None Stainless Steel
Body Material None Brass
ENP ENP Brass
303 303 Stainless Steel
316 316 Stainless Steel
Seal Material
About this option 		None Buna-N
E EPDM
EB Black EPDM
V Fluorocarbon (FKM, Viton®)
S Silicone
T Teflon®
AF TFE/P (AFLAS®)
F Fluorosilicone
C Perfluoroelastomer (FFKM, Chemraz®)
Cleaning Options
About this option 		None Standard Cleaning
I Instrument Grade Cleaning
Lubrication Options
About this option 		None Standard Lubrication
X No Lubrication

Overview

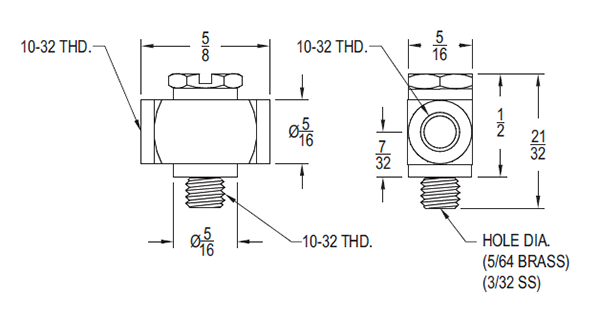

Description: Adjustable position tee fitting, with one external 10-32 thread and two internal 10-32 threads.

Max Pressure Rating:
1,000 psig brass
3,000 psig stainless steel

Features

  • Beswick’s trademark O-ring seal design provides a leak-tight joint.

Note: Brass stud on MTSB does not have a screwdriver slot.
