3/8 Inch OD Tube to 5/16-24 Thread, Straight Fitting

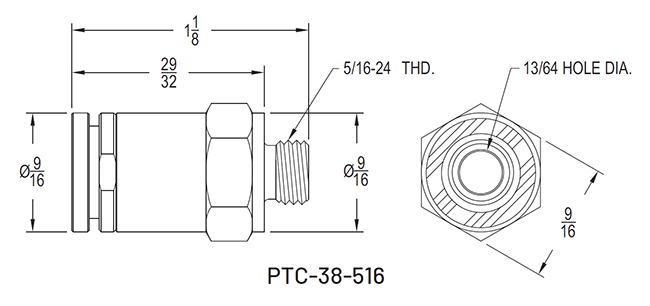

CAD Model
Message

Overview

Description: Straight fitting, from 5/16-24 external thread to 3/8″ OD tubing.

Max Pressure Rating: 150psig

Materials: 17-7PH and 303 Stainless Steel.

Features

  • All components, including the release collar, are fabricated from stainless steel, permitting use in corrosive or high temperature environments, as well as applications requiring clean components.
  • All configurations feature Beswick’s unique captured O-ring seal design, for leak-tight sealing at both the threaded end of the fitting and at the tubing-to-fitting interface.
  • Beswick Push-To-Connect style fittings permit easy tube connecting and disconnecting, and are an excellent choice for use with many types of plastic tubing including: 90+ durometer Polyurethane, Polyethylene, Nylon and Teflon.
