1/4 Inch OD Tube to 10-32 Thread, Tee Fitting

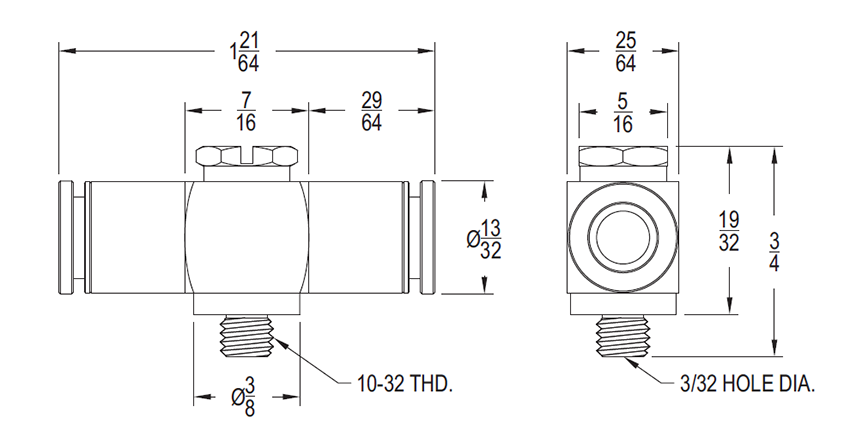

CAD Model


Description: Adjustable position tee fitting, from 10-32 external thread to 1/4″ OD tubing.

Max Pressure Rating: 150psig


  • All components, including the release collar, are fabricated from stainless steel, permitting use in corrosive or high temperature environments, as well as applications requiring clean components.
  • All configurations feature Beswick’s unique captured O-ring seal design, for leak-tight sealing at both the threaded end of the fitting and at the tubing-to-fitting interface.
  • Beswick Push-To-Connect style fittings permit easy tube connecting and disconnecting, and are an excellent choice for use with many types of plastic tubing including: 90+ durometer Polyurethane, Polyethylene, Nylon and Teflon.
