M5 Thread to 1/16 Inch O.D. Tubing, Elbow Compression

CAD Model
Message

Related Products

Two Piece Replacement Ferrules

Front and rear ferrules. Note: ENP brass S5MCBL-16-ENP models use brass front and rear ferrules.

Configure Here
PEEK Replacement Ferrules

Single piece PEEK replacement ferrules.

Configure Here
Replacement Screws

Compression screws for all available materials.

Configure Here
Pre-Swage Tools

Tools for pre-swaging ferrules onto tubing prior to assembling fitting.

Configure Here
Replacement O-Rings

O-Rings in all available materials for both body and stud seals.

Configure Here
Replacement Studs

Studs for all available materials.

Configure Here

Overview

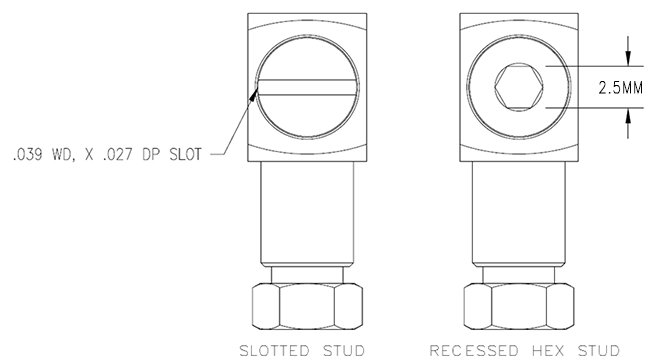

Description: Miniature compression fitting with M5x0.8 external thread, for 1/16″ OD stiff plastic or metal tubing. This adjustable position elbow has a recessed stud for a low profile configuration.

Max Pressure Rating: 1,000 psig in nickel plated brass and 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor.

Features

  • Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope.
  • Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings.
  • Easy to install without special tools.

Note: “-ENP” configurations are supplied with electroless nickel plated brass body, stud, and screw. Ferrules are supplied in brass.
