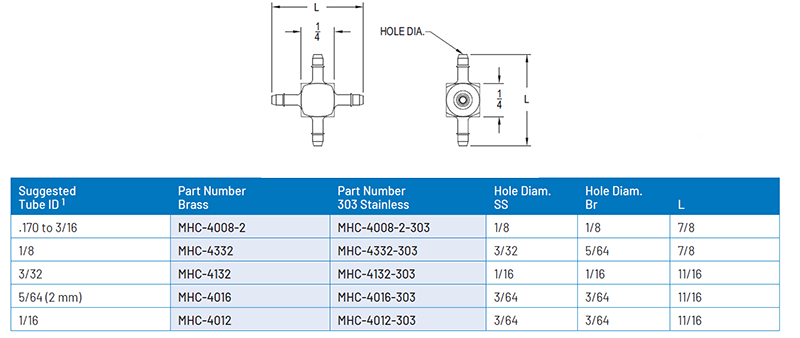

Configure HereBarbed Tubing Union Cross
Overview
Description: Tubing supported cross fitting, used to join four tubes or hoses of the same inside diameter.
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
- Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: Cross is available with different barb size combinations on special order. Consult factory for details.
