Barbed Tubing Union Tee

CAD Model
Message

Related Products

Polyurethane Tubing

Polyurethane tubing is recommended for use with our barbed fittings. It provides excellent flexibility and resistance to kinking.

Configure Here

Overview

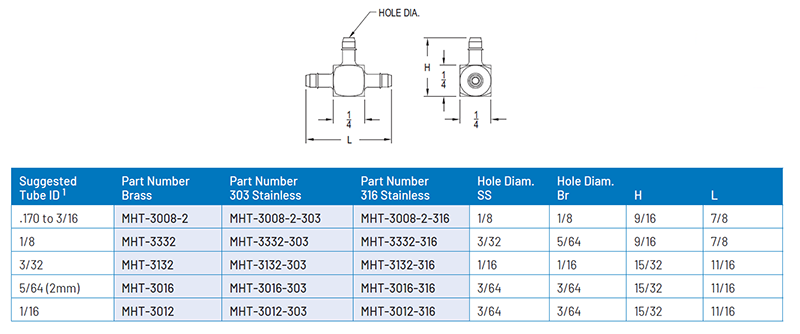

Description: Fixed position tubing supported tee fitting, used to join three tubes or hoses of the same inside diameters.

Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

  • Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: Additional barb size combinations are available on special order. Consult factory for details.
