Barb Fitting Tubing Union Straight

CAD Model
Message

Related Products

Polyurethane Tubing

Polyurethane tubing is recommended for use with our barbed fittings. It provides excellent flexibility and resistance to kinking.

Configure Here

Specifications

Material Construction 303 Stainless, Brass
Maximum Pressure 100 psig
Product Family Fittings
Availability Usually Ships Within 8-11 Weeks
Configurable Options 3

Ordering Options

Part number format: MHU-[Tubing I.D.][Material][Cleaning Options]. Each bracketed segment is replaced by the code of the option chosen below; an option with no code is the standard choice and adds nothing.

Option Code Choice

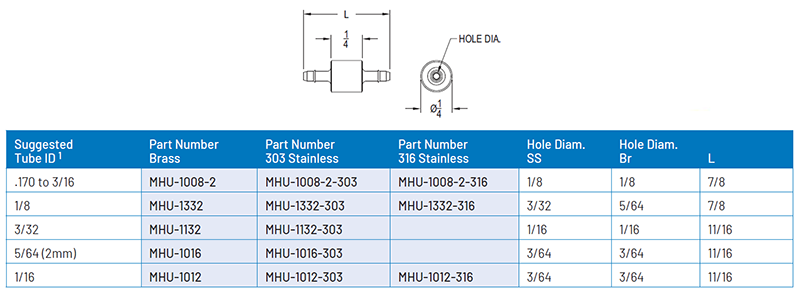

Tubing I.D. 1008-2 .170" to 3/16" (4.5mm)
1332 -- 1/8" (3.2 mm)
1132 -- 3/32" (2.4mm)
1016 -- 5/64" (2.0 mm)
1012 -- 1/16" (1.6mm)
Material None Brass
ENP ENP Brass
303 303 Stainless Steel
Cleaning Options
About this option 		None Standard Cleaning
I Instrument Grade Cleaning

Overview

Description: Tubing supported in-line nipple. Used to join two tubes or hoses of the same inside diameter.

Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

  • Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
