Barb Fitting Tubing Union Reducer Straight

CAD Model
Message

Related Products

Polyurethane Tubing

Polyurethane tubing is recommended for use with our barbed fittings. It provides excellent flexibility and resistance to kinking.

Configure Here

Overview

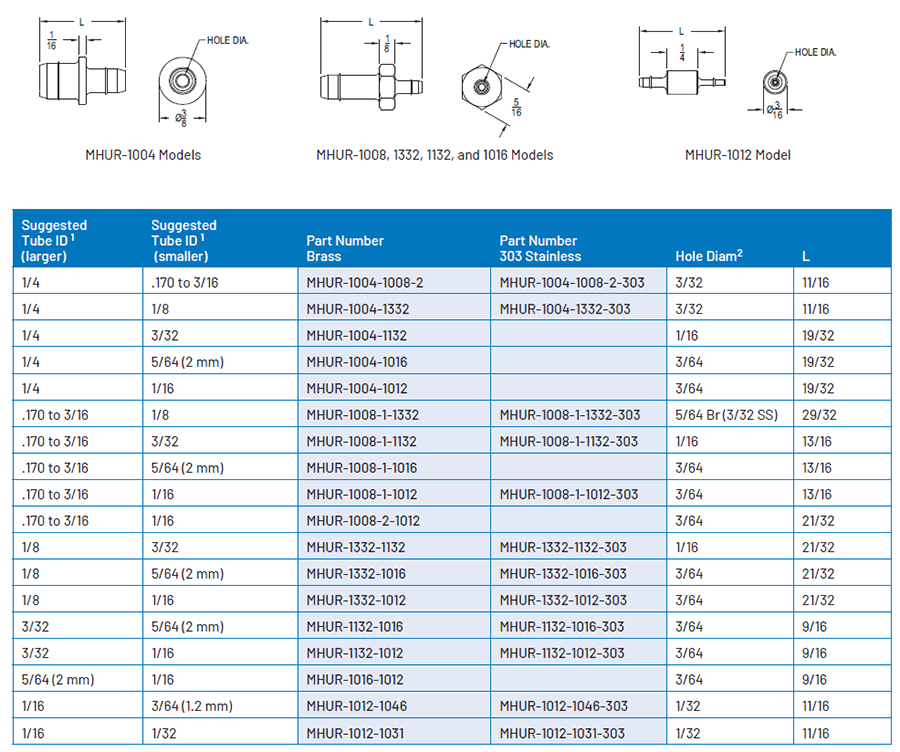

Description: Tubing supported in-line reducing nipple. Used to join two tubes or hoses of different inside diameters.

Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.

Features

  • Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.

Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
