Configure Here10-32 Thread to Barb and 10-32 Thread, Street Tee Adjustable Position
Specifications
| Material Construction | Stainless Steel Stud. Brass 303 or 316 Stainless Steel Body |
|---|---|
| Seal Material Options | Black EPDM, Teflon®, Buna-N, Chemraz®, EPDM, AFLAS®, Viton®, Fluorosilicone, Silicone |
| Maximum Pressure | 100 psig |
| Product Family | Fittings |
| Availability | Usually Ships Within 1-2 Business Days |
| Configurable Options | 5 |
Overview

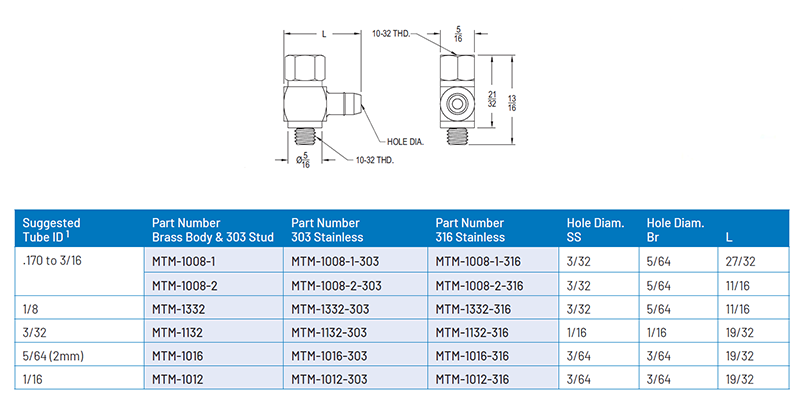

Description: Adjustable position street tee fitting, from 10-32 external thread, to 10-32 internal thread and barb.
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
- Beswick’s trademark O-ring seal design provides a leak-tight joint.
- Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
